1.5 kw 2.2kw 3kw 4.5kw 3 Axis 4 Axis CNC Router Machine For Wood
Acrylic PVC Products Furniture Advertising Industry
(Model:PE-1325)
★ Product Introduction of wood engraving machine :
The PE-1325 cnc router machine for wood is equipped with a three-axis ball screw drive, and the control
system can be a PC platform or a handheld controller with a USB
interface. This CNC milling machine model is perfect for any size
shop that needs a compact machine to run small milling jobs or use
as an educational tool.
This cnc router machine for wood is suitable for custom woodwork, fixtures, channel letters, sign
making, education, model making.

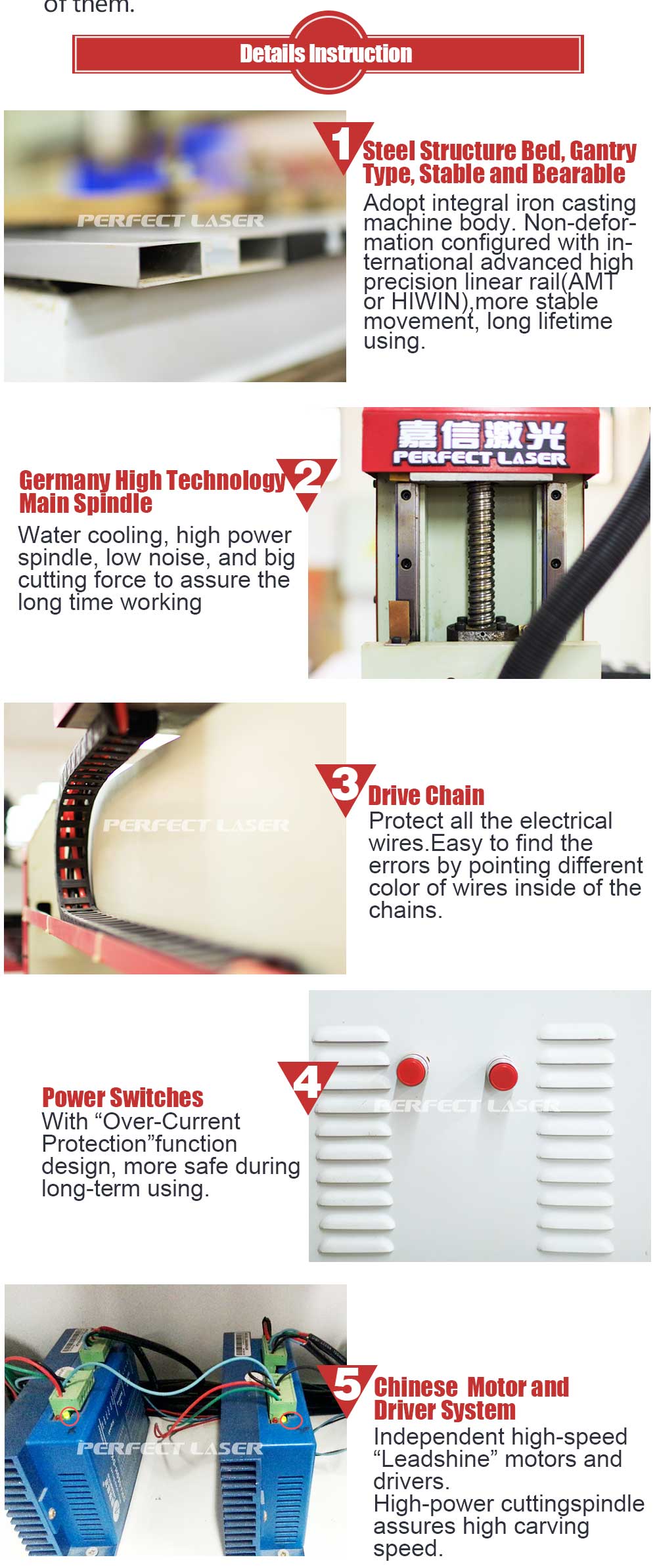

★ Product Features of wood engraving machine:
1.Adopts 8 mm steel Machine welding bed, after hundred times'
special vibrate experiment, we ensure that the lathe will not
deform during their long-term working hours. With enhanced welding
technicals, we provide our machines good stability, longer life and
amazing accuracy rate.
2. 3KW Water cooling spindle with good cooling effect. Almost no
noise, long life.
3. Taiwan Hiwin square rails has more higher precision, less wear
and tear can maintain high accuracy. it's apply to high-speed move
and greatly reduce the drive horse power the machine required.
What's more, can bear the load from left and right / up and down at
the same time.
4. Leadshine stepper motor and driver, won't lose step when it
work, guarantee the positional accuracy of the motor.
5.DSP control system don't need connect to PC. it is easily operate
and learned, especially for the freshman.
★ Application of wood engraving machine:
1. Woodworking industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen,
craft sash, composite gates, cupboard doors, interior doors, sofa
legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting,
crystal word making, blaster molding, and other advertising
materials derivatives making.
★ Technical Parameters of wood engraving machine:
| Product | Advertising CNC Router |
| Model | PE-1325 (1300*2500mm) |
| Power | 2.2kw | 3kw | 4.5kw |
| Table material | Aluminum Alloy |
| Maximum feed height | 80mm |
| X,Y,Z Guideway rails type | Round Shape Guide Rail, Rod Transmission |
| Max engraving speed | 4,000-7,000mm/min |
| Resolution ratio | 0.002mm |
| Repetition accuracy | ±0.02mm |
| Spindle power | 1.5kw (Optional 2.2kw, 3kw,4.5kw) |
| Spindle rotating Speed | 6000 - 24,000rpm |
| Spindle cooling | Water Cooling |
| Drive motor system | Step Motor and Step Driver |
| Interface | PCI Port or USB Port |
| Memory buffer (Flash) | 128MB |
| Engraving command | G code, u00, mmg, PLT, HPG |
| Command language system | English Version, Windows 98/2000/XP Operation System |
| Operational Software | Original Type3 Software, ArtCam software or Wentai Software |
| Command language system | English Version, Windows 98/2000/XP Operation System |
| Software compatibility | Support CAD/CAM software, PLT format, Corel Draw, Auto CAD |
| Working temperature | 0-45 |
| Relative humidity | 30% - 75% |
★ Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving
the product, please feel free to contact us. Problems would be
solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland,
Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia,
Japan, Korea, Thailand, Indonesia, Uruguay and many other
countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick
delivery.
