Handheld Metal Stainless Steel Aluminium Laser Engraving Machine
Plastic Laser Marking Machine
(Model:PEDB-400H)
★Product Introduction of laser marking and engraving
Perfect Laser is the world famous fiber laser marking machine manufacturers and suppliers, recently launched a new laser marking machine: Handheld Fiber Laser Marking Machine, model PEDB-400H.
This type of laser marking machine can remove the original fixed bracket and make handheld marking,
the laser marker desktop and handheld design can meet a variety of
production needs, the laser marker is compact and portable, small footprint, marking speed is twice
as the same type of laser. Adopting imported laser, the core
components of the life length up to 100,000 hours or more, no need
of consuming materials.
★Product Features of laser marking and engraving
1.Compact and portable:this laser marker with small size, light weight, laser marking machine is easy to carry, galvanometer can be rotated 90 degrees according
to the requirements, this laser marker is suitable for side marking and pipeline work.
2. Desktop and handheld design: this laser marking machine with removable fixed bracket, to meet a variety of marking needs.
3.Fixed automatic focusing bracket: the laser marking machine adopts fixed automatic focusing bracket, and the laser marker is flexible and convenient to use.
4.Laser beam stabilization: laser stability, small loss, free from
the outside dust and mechanical impact, laser marker beam stability.
5.The laser marker is maintenance-free, no supplies, and no need to adjust or clean
the lens.
6.The laser marker processing speed is 2-3 times of the traditional laser marking machine.
7.The spot quality of laser marker is excellent and the peak power
is high, and the best marking effect can be achieved in the same
material.
8.Using automatic lift platform, integrated air-cooled system,
integrated design, the appearance of laser marker is simple and
beautiful.
★Application of laser marking and engraving:
Electronic components, instrumentation, hardware tools, auto parts,
daily necessities, jewelry, food and beverage packaging, precision
instruments, gifts jewelry, medical equipment and other high-end
products, high precision marking printing. Typical applications,
such as plastic (PA66) insulation laser marking, metal plate
automatic loading and unloading laser marking, packaging box online
laser marking, metal mark.
★Technical Data of laser marking and engraving:
| Model No. | PEDB-400H |
| Type | Hand-held |
| Computer | Not includes PC |
| Laser Source |
| IPG Series: | Pulsed, High Energy Ytterbium Fiber Lasers |
| Mode of operation | Pulsed |
| Polarization: | random |
| Nominal average output power | 10W - 50W |
| Central emission wavelength: | 1060-1070 nm,Q-switched operation Output power adjustment range
10%-100% |
| Emission Bandwidth (FWHM) | <10 nm |
| Long-term average power instability | <5% |
| Pulse width, (FWHM) | 100 ns |
| Laser switching ON time | 180 μsec |
| Laser switching OFF time | 180 μsec |
| Pulse Repetition Rate* kHz | 20-80 kHz |
| Energy per pulse (PRR = 20 kHz) | 0.95 mJ |
| Typical beam quality, M2 | <1.8 |
| Output fiber delivery length | 3m |
| Operating voltage: | 220V |
| Max. Power consumption: | 600W |
| Laser system |
| Scanning Speed: | 0-7000mm/s |
| Marking Speed: | 0-5000mm/s |
| Marking size: | 110mm×110mm (F-theta 160) |
| Spot size: | ≤ 40 micron (F-theta 160) |
| Cooling unit: | Air cooled |
| Pilot laser: | 650nm diode laser,visible red light for marking guide |
| Continuous working time: | ≥16h |
| Humidity: | 45～85% (no condensation) |
| Operating temperature: | 0~40℃ |
| Control units | Laser Mark (English Version) |
★Samples of laser marking and engraving:

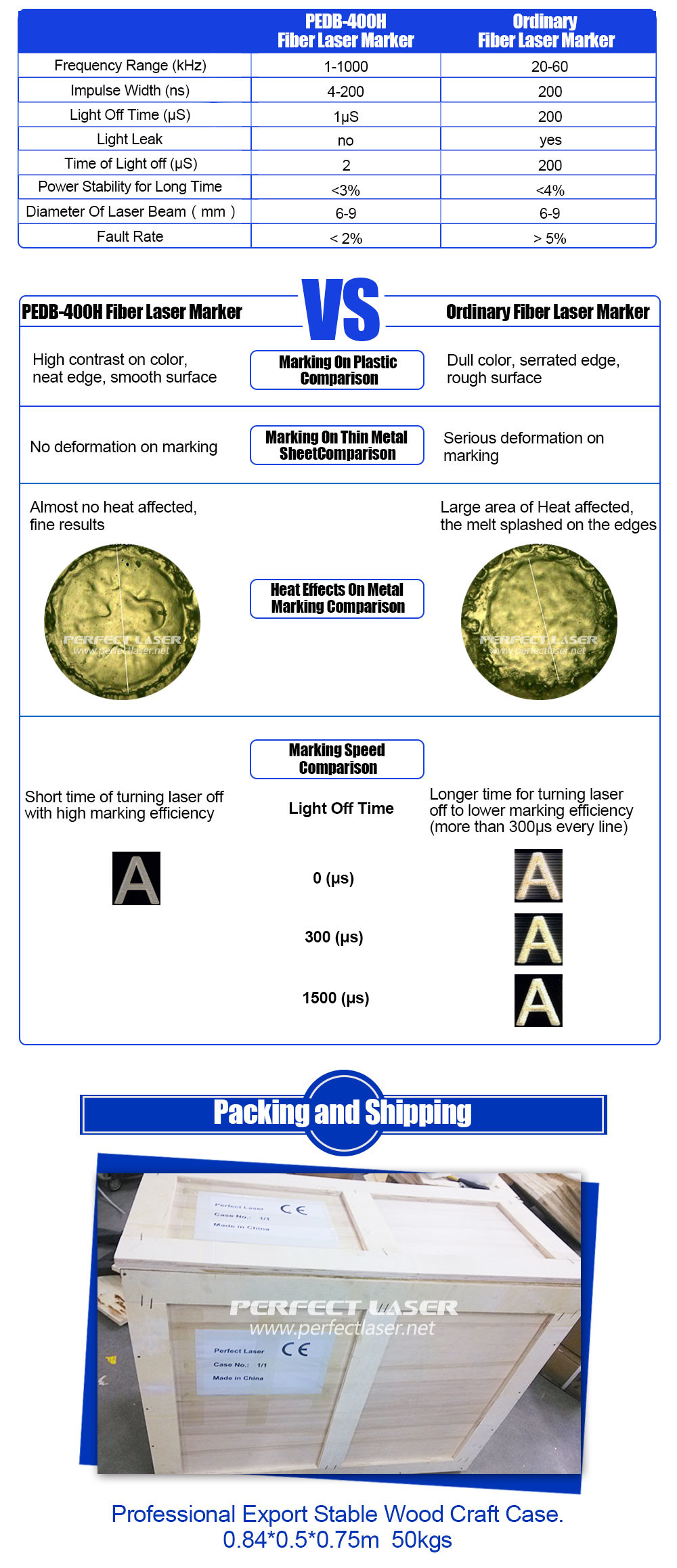

★Packaging & Delivery:
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving
the product, please feel free to contact us. Problems would be
solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland,
Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia,
Japan, Korea, Thailand, Indonesia, Uruguay and many other
countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick
delivery.
