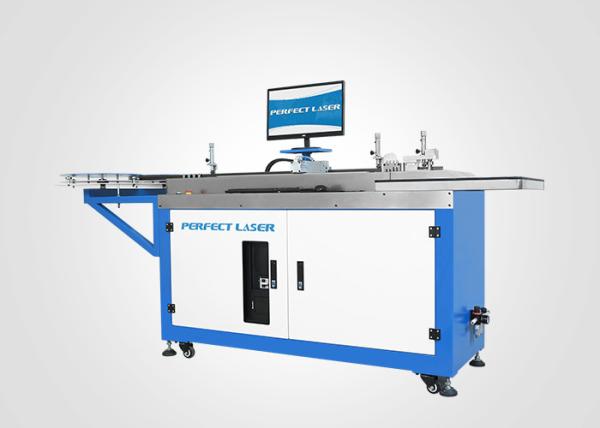

    Aluminum Stainless Steel Rule Auto Channel Letter Bender Machine For Die Cutting Making Equipment

    Ask Lasest Price
    Brand Name : Perfect Laser
    Model Number : PEC-100
    Certification : CE / ISO / FDA SGS / TUV
    Price : Negotiable
    Payment Terms : T/T, L/C, PayPal, Western Union
    Supply Ability : 3000 Unit per Month
    Delivery Time : 5-10 Working Days
    • Product Details
    • Company Profile

    Aluminum Stainless Steel Rule Auto Channel Letter Bender Machine For Die Cutting Making Equipment

    Aluminum Stainless Steel Rule Auto Channel Letter Bender Machine For Die Cutting Making Equipment



    Description

    Aluminum Stainless Steel Rule Auto Channel Letter Bender Machine For Die Cutting Making Equipment


    Automatic processing steel rule cnc auto bender machine for die cutting die making


    1.Panasonic servo motor system.


    2.Bending steel ruler for wooden die plate production.

    3.Taiwan Hiwin guide rail and Ball screw.

    4.It can automatic cnc bending 1pt=0.45, 2pt=0.71, 3pt=1.05mm steel rule.

    5.CE, BV Certification.


    Product Features

    Aluminum Stainless Steel Rule Auto Channel Letter Bender Machine For Die Cutting Making Equipment


    1.Unique imported mold tool design,easy to bend,high precision of size,durable.


    2.Panasonic servo motor & Taiwan Hiwin guide rail and Ball screw system, eradicate skidding and dislocated.

    3.Multifunction: bending, bridge, front lipping, back lipping, cutting, flat cutting, it’s CNC processing steel rule auto bender machine for die cutting die making equipment.


    4.Rely on the dxf, AutoCAD figures, can finish all kinds of complicated patterns.

    5.Roller continuous feeding with servo digital work mode.(No need to feed with tool post repeated, high accuracy and speed)

    6.Self- developed updated automatic bending control system with powerful function.

    7.Full English & Chinese interface,easy to learn and easy to operate.

    8. We take bend first and cut last, save the time and material for the user.


    9.Apply to various kinds of mold processing, such as Paper boxes, Dolls, Cake Molds, Cartons, Flowers and Edition, etc.


    Specifications


    Model No.

    PEC-100

    Blade thickness (mm)

    0.45, 0.53, 0.71, 1.05(mm)

    Blade height (mm)

    8 - 30mm

    Front Min. Bending size (mm)

    1.5mm

    Back Min. Bending size (mm)

    1.0mm

    Feeding precision (mm)

    ±0.03mm

    Bending flatness (mm)

    ±0.2mm

    Max. Bending angle

    100°

    Min. ARC radius of 90° degree

    0.4mm

    Functions

    Bending, cutting, bridging, lipping

    Cutting methods

    Swaying off or Auto flat cutting

    Optimal pattern format

    DXF

    Barometric supply

    0.6mpa

    Voltage supply

    380V 50/60HZ (standard)

    Total power

    1.3KW

    Over dimension of machine

    2700*1050*1350(mm)

    Packaging dimension

    1970*760*1370(mm)

    Total weight

    450KGS

    H.S. Code

    8462219000

    Bending Blade thickness

    0.45mm

    Bending Blade height

    8-12mm


    Sample Show



    Competitive Advantages


    1. We offer high quality products at competitive price in quick delivery.

    2. 100% custom pass guaranteed.

    3. Good after-sale service.

    4. Flexible and Untraceable payment terms.

    5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.


    Packaging & Delivery


    1. Prompt deliver at the very day.

    2. Sophisticated and professional logistic agent.

    3. Well-trained and disciplined packing team.

    4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
