    Desktop CNC Engraving Cutting Machine For Small Woodworking Metal Aluminum Wood Plastic

    Ask Lasest Price
    Brand Name : Perfect Laser
    Model Number : PE-3030
    Certification : CE /ISO /TUV /SGS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 400 sets per month
    Delivery Time : 3-7working days
    • Product Details
    • Company Profile

    Desktop CNC Engraving Cutting Machine For Small Woodworking Metal Aluminum Wood Plastic

    Desktop Small Woodworking CNC Router Metal Aluminum Wood Plastic PVC Acrylic Engraving Cutting Machine Price

    (Model: PE-3030)

    Product Introdution


    Perfect Laser PE-3030 small wood metal CNC engraving machine is an ideal small CNC router for making architectural models, seals, art, decorative molds, industrial molds, building models, instrument panels, woodworking and other processing industries. Rotary Type PEM-3030S is suitable for engraving all kinds of round and cylindrical parts by adding a rotary fixture.This rotary engraving machine uses imported ball guide screws in X, Y, Z axis to ensure high precision. Even 1mm letters are clearly distinguishable. Also with advanced CNC system, this small type engraving machine can work continuously and smoothly at high speed.


    Product Features


    1. Adopt luxury key accessories such as ball screw rod from Germany, linear guide rail imported from Taiwan, imported control panel, which makes efficient and stable.

    2. Computer controlled rotary engraving machine can directly import CAD drawings, automatically create and optimize tool path, groove, polish.

    3. A perfect combination of CNC and computer systems to achieve highly automated factory equipment management, suitable for mass production of high precision glass deep processing products.

    4. Efficient and fast mechanical transmission, maximum speed up to 60m/min, reaches European bar.

    5. Use of long wheel, tool grinding wheel available Ф170 to Ф110, reduce production cost.

    6. English user interface, advanced human-machine dialogue function, easy to learn and use.


    Application


    This small CNC engraving machines are widely used advertising, seals processing, handcrafts, special instruments processing, little moulds processing, etc. And the rotary engraving machine can engrave kinds of metal or nonmetal stuff, such as: iron engraving, iron cutting, copper engraving, copper cutting ,aluminum engraving, aluminum cutting, plastic engraving, plastic cutting ,wood engraving, wood cutting .etc. Due to its numerous features and applications.

    The machine can also be called small CNC router,metal CNC router,rotary engraving machine,small CNC engraving machines.


    Technical Data


    ModelPE-3030PE-3030S
    Rotary FunctionNoYes
    Power stroke of X,Y,Z axis300×300×80mm
    Size of working table520×540mm
    Power of main axle1.5KW
    Running location precision of X,Y,Z axis±0.03mm
    Repeating location precision of X,Y,Z axis±0.01mm
    Power stroke of Z axis120mm
    Working styleStepping motor
    Spindle speed of frequency conversion main axis6000-24000rpm/min
    Working voltageAC220V/50HZ
    Engraving orderG Code
    Optional main axis and Cartridgeφ3.175.φ6
    XY Running sensitivity0.02mm
    Optional ItemAcrylic Polishing Machine

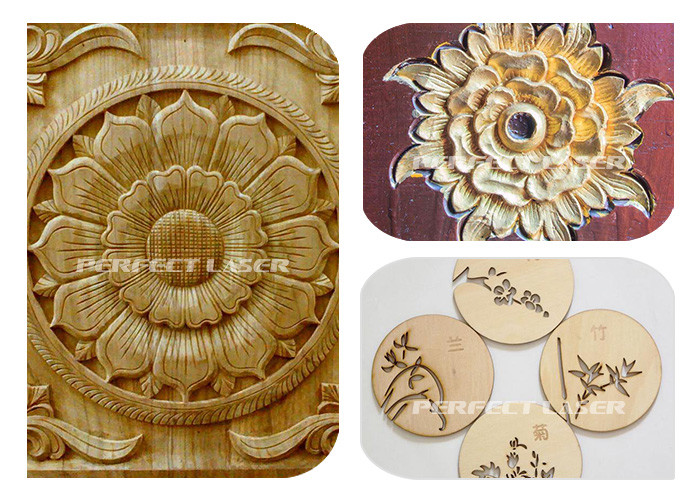

    Sample Shows


    Desktop CNC Engraving Cutting Machine For Small Woodworking Metal Aluminum Wood PlasticDesktop CNC Engraving Cutting Machine For Small Woodworking Metal Aluminum Wood Plastic


    Packaging & Delivery



    1. Prompt deliver at the very day.
    2. Sophisticated and professional logistic agent.
    3. Well-trained and disciplined packing team.
    4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

    Competitive Advantages


    1. We offer high quality products at competitive price in quick delivery.
    2. 100% custom pass guaranteed.
    3. Good after-sale service.
    4. Flexible and Untraceable payment terms.
    5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries
