    3W Desktop Mini Portable Plastic Leather Ceramic Wood Metal Stainless Steel UV Laser Engraving Marking Machine

    Ask Lasest Price
    Brand Name : Perfect Laser
    Model Number : PE-UV-03 05 Pro
    Certification : CE /ISO /TUV /SGS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 400 sets per month
    Delivery Time : 3-7working days
    • Product Details
    • Company Profile

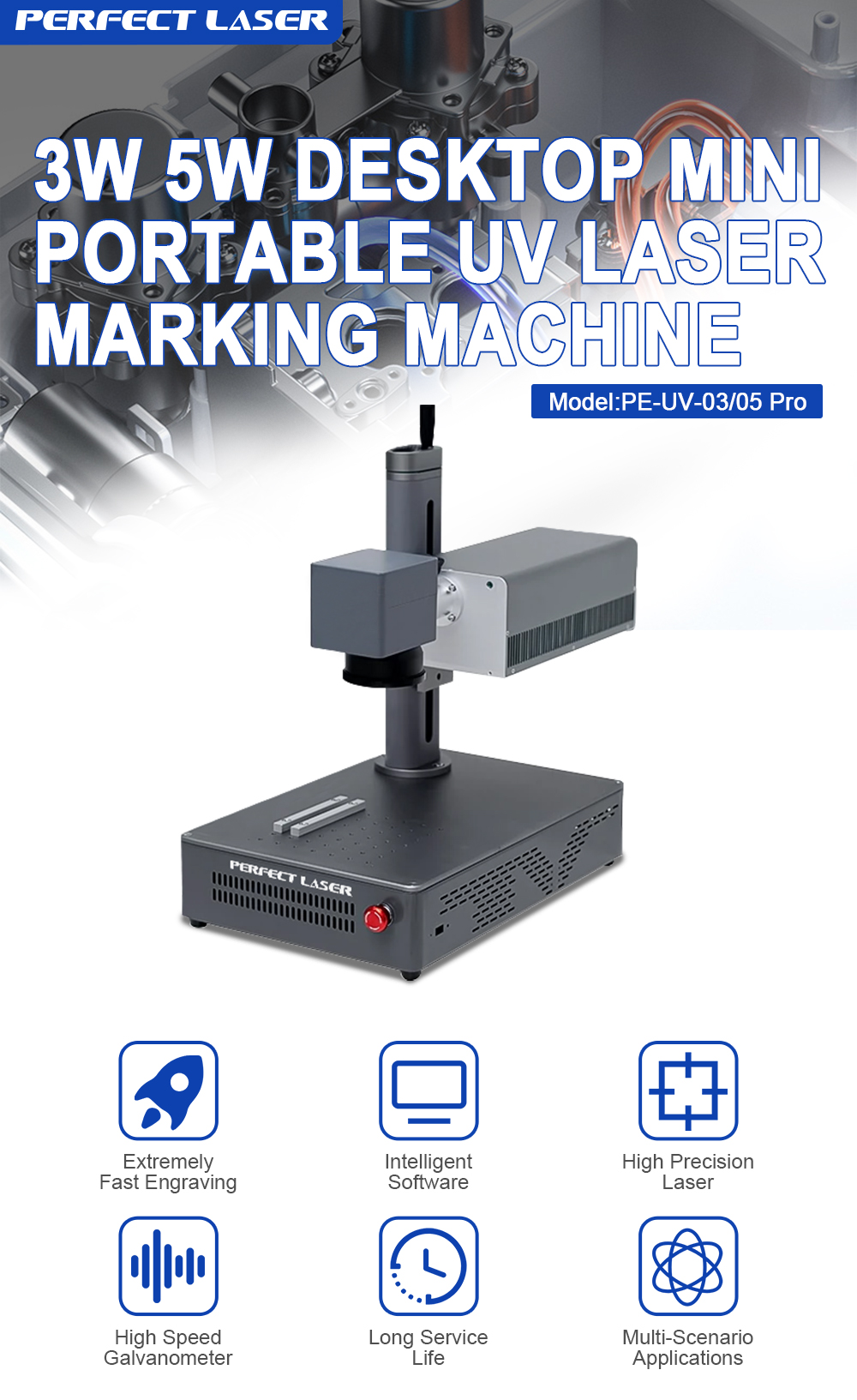

    3W Desktop Mini Portable Plastic Leather Ceramic Wood Metal Stainless Steel UV Laser Engraving Marking Machine

    3W Desktop Mini Portable Plastic Leather Ceramic Wood Metal Stainless Steel Uv Laser Engraving Marking Machine

    (PE-UV-03/05 Pro)

    Product Introduction


    The desktop uv laser machine is easy to use, portable, and suitable for one person to handle. It has powerful functions, high precision and a wide range of applications. It fulfills the needs of various sectors for customization and enables a wide range of scenario applications.

    The desktop uv laser machine uses intelligent software, the operation page is simple and easy to understand, and the functions are clear at a glance. Beginners only need ten minutes to learn how to operate and mark.



    Product Features


    1. Using high-quality UV laser, the uv laser engraver can carve transparent materials, peel paint, and perform artistic processing. It can continuously mark for 24 hours, with a long service life, no consumables, and zero maintenance costs.

    2. Small in size and light in weight, the uv laser engraver body is made of all metal material, weighing only 22kg, making it easy to carry and move. It can be used in any work scenario without restrictions.

    3. High speed integrated galvanometer, fast marking speed, high efficiency, can reach ≥ 10000mm/s.

    4. Industrial field mirror focusing design, which uv laser engraver focuses the laser beam energy through the field mirror, resulting in a more delicate effect with a repetition accuracy of 0.001mm, achieving high-precision marking effect.

    5. Integrated air-cooled structure, no need to add water, no need to drag water pipes, eliminating the hassle of regular water changes.

    6. Manual lifting design,uv engraving machine can quickly adjust the calibration focal length, and support carving of objects at different heights

    7. Emergency braking and one click pause of laser operation for safer operation.

    8. Easy to learn, independently developed software with computer operation, multiple modes to choose from, simple interface, even beginners can quickly master.

    9. The uv engraving machine supports multiple file formats, multiple material carriers, and can engrave numbers, text, graphics, dates, QR codes, barcodes, and more.


    Application


    1. Applied materials

    The uv laser machine is widely used for surface carving of metals, plastics, wood, leather, acrylic, nanometre, fabrics, ceramics, purple sand, glass, crystal products, and coated films.

    2. Application industry

    The uv laser machine is widely used in mobile phone screens, LCD screens, optical devices, automotive glass, hardware, glasses and watches, gifts, PCs, precision electronics, instruments, PCB boards and control panels, nameplates, etc.


    Technical Data

    Product NameSmall Desktop UV Laser Marking Machine
    ModelPE-UV-03/05 Pro
    Laser Power3W/5W
    Ambient Temperature-10℃~65℃
    Repeatability Precision≤0.001mm
    The Depth of Marking0.015-0.3mm
    Standard Accuracy≤0.001mm
    Standard Speed≤10000mm/s
    Cooling MethodAir cooling
    Laser Wavelength355nm
    Engraving Area

    Standard: 150*150 mm

    Customizable: 200*200mm

    Wide Marking0.001-0.05mm
    Pulse Repetition Rate Range

    10kHz to 150kHz

    (Options single shot to 200kHz)

    Pulse With≤12ns@30kHz
    Average Power>5W@30kHz
    Average Power Stability<+3%over 24 hours
    Single Pulse Stability<3%rms
    Spot Mode TETEM00(M2<1.2)
    1/e2 Beam Diameter0.7mm
    Beam Roundness>90%
    Pointing Stability<50urad
    Polarization DirectionHorizontal
    Polarization Ratio100:1
    Whole Machine Power600W
    Supported FormatsPLT.DXF.BMP
    Support SystemWin7/Win10/XP
    Fuselage Weight

    Net weight: 22.2 kg

    Total weight: 24.2 kg

    Machine Size (L * W * H)500*330*580mm
    Packing Size720×460×380mm
    Support Language

    Chinese Simplified & Traditional,English, Korean,Japanese,Arabic,Russian,Portuguese,Vietnamese,Thai,Spanish,French,German,

    Turkish,etc.

    Sample Shows

    3W Desktop Mini Portable Plastic Leather Ceramic Wood Metal Stainless Steel UV Laser Engraving Marking Machine3W Desktop Mini Portable Plastic Leather Ceramic Wood Metal Stainless Steel UV Laser Engraving Marking Machine
