10W Intelligent Automatic Portable Desktop Small Laser Cutter
Engraver
(Model: PEDK-10)
►Product Introduction of tabletop laser cutter
Perfect Laser Intelligent portable small desktop laser cutter engraver adopts the new compressed laser technology, which makes the laser
beam more fine and concentrated, and the engraving effect is more
delicate.
Belt drive endows the machine with high-efficiency engraving,
greatly improves the stability of engraving, and the desktop laser cutter engraver is more suitable for high-speed cutting.

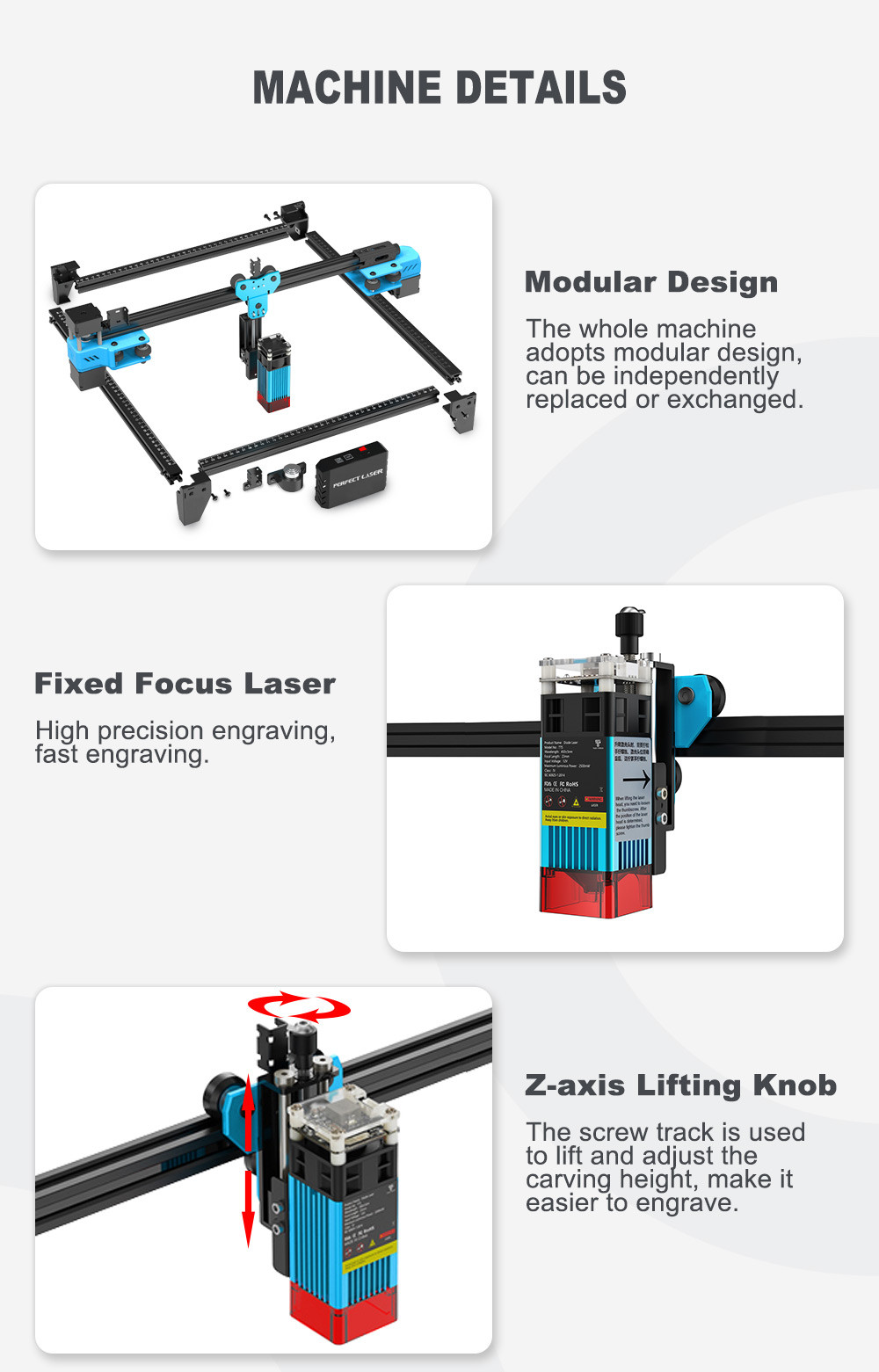

The modular design of the whole machine, the main board adopts a
high-speed intelligent module to integrate WiFi and Bluetooth
functions, a variety of engraving connection methods, simple
installation and easy to use, and effectively improve the user's
engraving experience and engraving efficiency.
►Product Features of tabletop laser cutter
1. Perfect Laser intelligent portable small desktop laser cutter engraver its whole machine adopts modular design and weighs only 4.3kg.
It’s easy to install and occupies a small area, which is convenient
for placement and transportation. It can be placed on the table for
operation.
2. Compression laser technology utilizes FAC lens - collimating
light function, the minimum light spot value can be reached up
0.08mm, with a longer effective energy range, higher energy
density, stronger cutting ability, can guarantee higher engraving
speed and higher engraving accuracy at the same time.
3. Y-axis two stepper motors run simultaneously, which can
accurately position the desktop laser engraving machine and make
the carving lines more smooth.

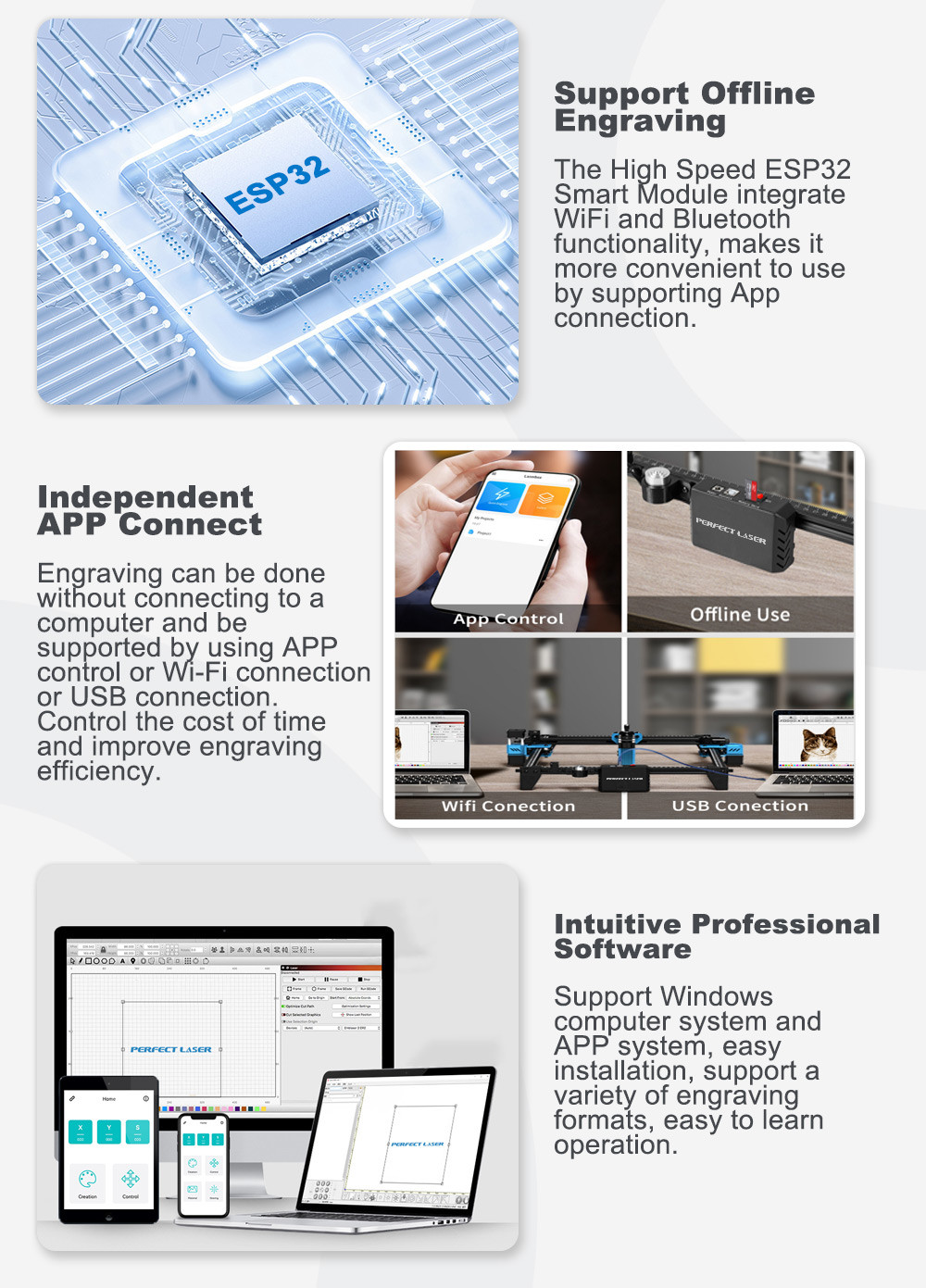

4. Support computer online and wireless network control engraving,
Support TF card engraving, Support mobile phone app. Multiple
engraving connections to improve user engraving experience and
engraving efficiency.
5. The light and handy protective cover adopts modular magnetic
suction design, easy to disassemble, installation is very simple.
6. The filter adopts the funnel-shaped design of fluid physics,
which can effectively prevent the smoke from spreading upward and
prevent the smoke from damaging the laser.
7. Low noise, no consumables, minimal pollution to the
environment.The desktop laser engraving machine is a high quality environmental protection engraving machine.
8. Stable frame and axis controls ensure precise detail during
engraving. The engraved picture is clear and beautiful.
► Application of tabletop laser engraver
Support engraving materials of the desktop laser engraving machine
include plywood, acrylic board, pine board, paper (not white),
Kraft paper, carton, leather, some dark plastic boards, pebbles,
powder-coated metal, painted metal, plated metal, anodized Alumina,
stainless steel, MDF, etc.
Cutting materials: plywood, acrylic board, pine board, paper, Kraft
paper, carton, leather, MDF,etc.
►Samples of tabletop laser engraver
►Technical Data of tabletop laser engraver
| Product Name | 10W Intelligent Automatic Portable Desktop Small Laser Cutter
Engraver |
| Model | PEDK-10 |
| Laser Power | 10W |
| Laser Wavelength | 445±5nm |
| Engraving Area | 300 × 300mm |
| Engraving Accuracy | 1mm |
| Spot Size | 0.08×0.08mm |
| Main Control Board | EPS 32-bit motherboard |
| Engraving Method | Computer/ Mobile APP |
| Data Transmission | USB / WiFi Connection |
| Document Format | NC/DXF/BMP/JPG/PNG/G code |
| Engraving Mode | image engraving, text engraving, contour engraving, pixel engraving |
| Operating Software | Laser GRBL, LightBurn |
| Software Support Languages | Chinese, English, Italian, French, Russian |
| APP support Languages | Chinese, English |
| Support Systems | Windows XP/Win7/Win8/Win10/ Win11 and Mac System(LightBurn) |
| Product net weight | 4.3KG |
| Product size | 510mm*570mm |
