    Jewellery Gold Laser Soldering Machine Laser Spot Adjustment Range 0.1~3.0mm

    Ask Lasest Price
    Brand Name : Perfect Laser
    Model Number : PE-W150/W200
    Certification : CE / ISO / FDA / SGS / TUV
    Price : Negotiable
    Supply Ability : 5000 Units Per Year
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    Jewellery Gold Laser Soldering Machine Laser Spot Adjustment Range 0.1~3.0mm


    Perfect laser Spot adjustment range 0.1~3.0mm Jewellery Gold Laser soldering machine


    Product Description

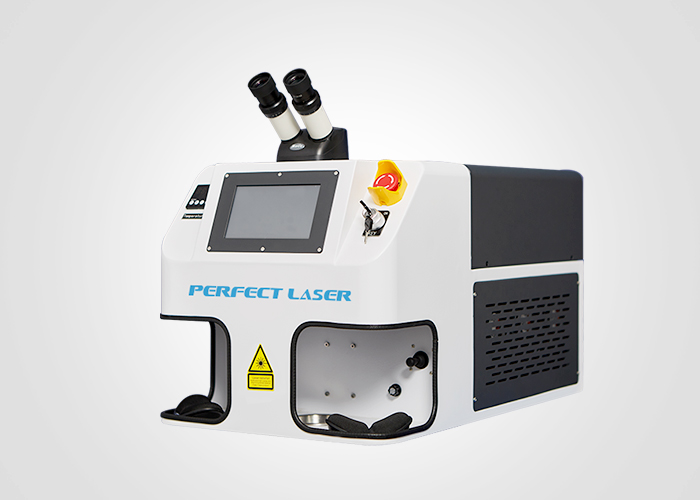

    PE-W200 is a Jewellery Laser soldering machine specially used for laser welding of gold and silver jewelry. It is mainly used for punching and spot welding of gold and silver jewelry. Laser spot welding is one of the important aspects of laser processing technology. The process of Jewellery Laser soldering machine is heat conduction and thermal processing. The whole process is to heat the surface of the workpiece by laser radiation,the heat received by the surface is radiated to the inside of the workpiece. Then, by controlling the parameters such as width, energy, peak power and repeated laser pulse frequency, the workpiece is melted to form a specific molten pool. Because of the unique advantages of Jewellery Laser soldering machine, it has been successfully applied to the processing of gold and silver jewelry and the welding of micro and small parts.

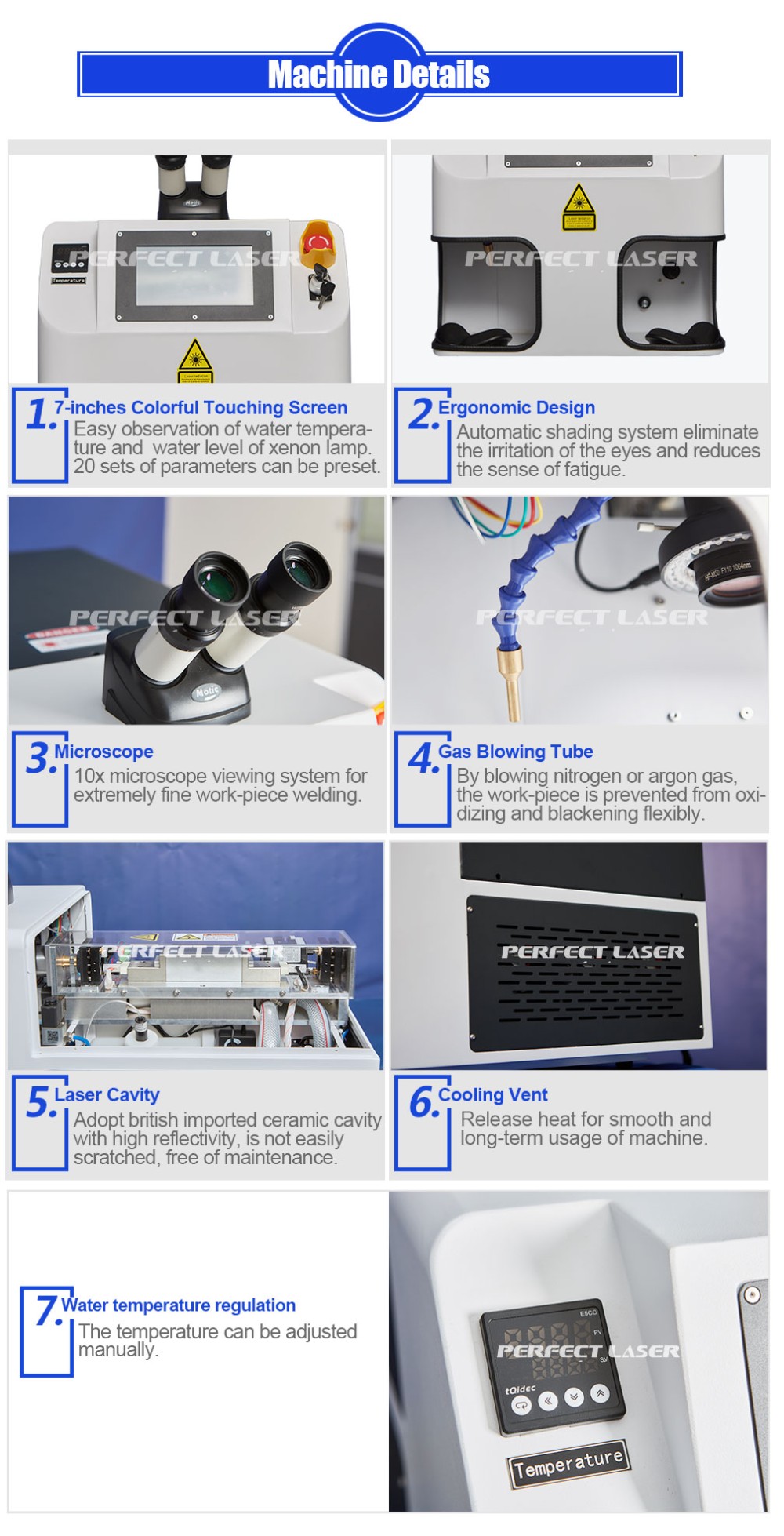

    Product Features


    1. The laser power supply is up to 9KW, with high working intensity and high precision.


    2. Imported ceramic capacitor cavity, corrosion resistance, high temperature resistance, high photoelectric conversion efficiency, concentrated cavity life (8-10 years), laser spot welding machine xenon lamp life is more than 8 million times.


    3. 24 hours continuous working ability, stable machine performance; advanced automatic shading system, reducing eye irritation during work, not working fatigue for a long time.


    4. Fast speed, high efficiency, large depth, small deformation, small heat affected zone, high welding quality, no contamination of welding points, high efficiency and environmental protection.



    Applications


    The jewellery laser soldering machine is specially used for gold and silver ornaments hole and spot welding sand holes, also for cold work high alloy steel, hot forged high alloy steel, nickel tool steel, high grade steel, copper alloy, brass, copper , high toughness aluminum alloy welding and other small parts metal welding materials.


    Product Configuration


    ItemStandard ConfigurationBrandQuantityOriginRemarks
    1CavityMorgan1 setBritainCeramic cavity
    2Water cooling machineShenzhen DoLoYo1 setShenzhenLow power consumption, low noise, environmental quality
    3Optical lens groupSingapore Wavelength1 setSingapore
    4Laser power supplyPerfect Laser1 setPerfect Laser
    5microscopeMicro1 setShenzhen
    6Crystal pumpEast Chun1 setChengdu
    7Xenon lampMechanical Research Institute1 pieceHefei

    Technical Parameters


    Product NameGold Silver Jewelry Laser Spot Welding Machine
    ModelPE-W100 W150
    Laser MediumNd3+:YAG
    Laser Power100W / 150W
    Laser Wavelength1064nm
    Pulse Width≤15ms (Adjustable)
    Pulse Frequency1-10HZ (Adjustable)
    Welding Spot Diameter0.2-2mm
    Filler Wire Diameter0.1-0.5mm
    Power Consumption3KW15A
    Power SupplyAC220V+5% Single Phase
    Operation InterfaceA 7-inch LCD Touch Screen Is Bilingual In Chinese And English
    Locating SystemMicroscope With Coaxial CCD
    Cooling TypedWater Cooling, Water Injection Of 3.5L
    Machine Dimensions790*430*590mm
    Machine Net weight65KG
    Work EnvironmentTemperature 5℃-35℃, Humidity 5%-85%.
    TrainingVCD training + 24 hours afters-sales service
    Warranty24 month

    Sample Pictures



    Packaging & Delivery


    1. Prompt deliver at the very day.
    2. Well-trained and disciplined packing team.
    3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
    4. Sophisticated and professional logistic agent.


    Competitive Advantages


    1. 100% custom pass guaranteed.
    2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
    3. Flexible and Untraceable payment terms.
    4. Good after-sale service.
    5. We offer high quality products at competitive price in quick delivery.
