    Smoke Purifier Fiber Laser Engraving Machine Fume Extractor Metal Frame Structure

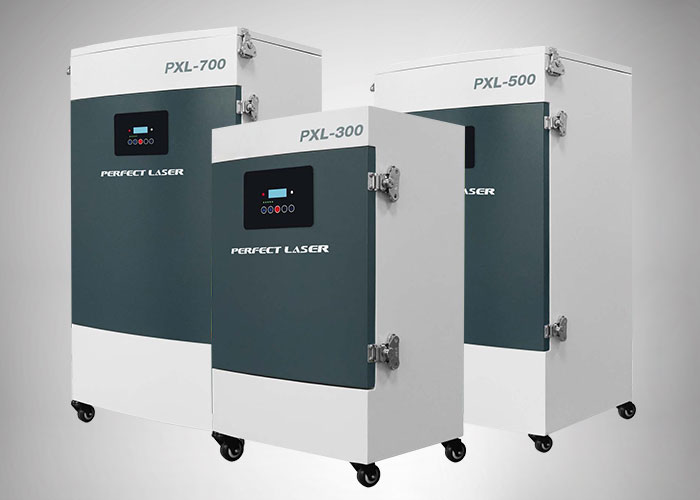

    Smoke Purifier and Fume Extractor for Laser Machine

    (Model: PXL-300 500 700)


    Introduction Of Smoke Purifier


    In the process of some laser machining, some smoke and dust will be produced inevitably. Nowadays,more and more people have paid attention to environmental protection. Based on this, PERFECTR LASER launched the PXL-300 500 700 smoke purifier. It can filter out the toxic and harmful substances in the smoke with its lightweight and efficient smoke extractor during laser processing.


    Features of Smoke Purifier


    1. The main body of the laser smoke purifier is a full-closed metal frame structure, which is durable, safe and environmentally friendly.

    2. The fume exhaust system adopts a microcomputer chip control system, which supports digital display and remote control. The impeller of the fume exhaust system is made of special alloy material, which is anti-corrosive, runs smoothly, and has a large air intake.

    3. The multi-layer filter element of the laser smoke extractor can effectively remove the harmful substances in the flue gas, and has a filter failure alarm function.

    4.The laser smoke purifier is equipped with an observation window, and the use of the filter element can be checked at any time through the window.


    Application of Smoke Purifier


    Laser smoke purifiers are widely used in small and medium laser marking, laser cutting and laser engraving .


    Technical Data of Smoke Purifier


    Product NameLaser Fume Extractor
    ModelPXL-300PXL-500PXL-700

    Product

    Parameters

    Filter element5 layers6 layers8 layers
    Weight36.7Kg60Kg70Kg
    Size425×315×700mm550×440×885mm550×440×1035mm
    Flow rate450m³/h700m³/h750m³/h
    Noise<60dB<60dB<63dB
    Power330W450W700W
    Voltage110V/220V110V/220V110V/220V
    Observationwindow-havehave

    Filter Element

    Size

    Fire net-415×335×25mm415×335×25mm
    Primary cotton378×278×100mm450×380×100mm450×380×100mm
    HEPA(PP)×2378×278×50mm450×380×50mm450×380×50mm
    HEPA(glass fiber)×2--450×380×50mm
    Activated carbon×2378×278×50mm450×380×50mm450×380×50mm
