20W Automatic Desktop Dual-light Source Galvanometer Laser Marking
And Engraving Machine
(Model: PEDB-101)
>>>>> Machine Introduction
This desktop dual-light-source galvanometer metal laser engraving
machine features a 20-watt dual-laser system with infrared and blue
light, enabling it to cut and engrave a wide range of materials.
Equipped with multiple processing modes, automatic focusing, safety
protection features, visual coordinate positioning, and surface
engraving capabilities, the metal laser engraving machine meets the
needs of both beginners and professionals. Ideal for both creative
design and industrial production applications.
>>>>> Product Features
1.Equipped with both blue and infrared laser sources, the metal
laser engraving machine offers extensive material compatibility,
capable of handling virtually all types of materials for
processing, fully catering to the diverse and customized needs of
our clients.
2.It supports multiple processing modes such as flat, relief, and
curved surfaces. Bitmap processing supports engraving and relief
carving, while vector graphics processing supports line engraving,
filling, and cutting, fully meeting users' high-quality processing
needs for different shapes, intricate textures, and fine details.
3.The aluminum laser engraver is flexible to operate: when online,
the machine can be easily controlled through the official software
on the computer, mobile phone, or tablet; In offline mode, the
machine's built-in touch screen controller can be used directly to
read files from a USB flash drive or the machine's internal storage
for processing.
4.It features a built-in overheat protection mechanism. When the
laser temperature gets too high, it automatically shuts down to
ensure device safety and extend its lifespan.
5.The aluminum laser engraver has a preview function. Before
processing, it allows you to preview the design and position,
ensuring every task is completed accurately and to your exact
specifications.
6.The stainless steel laser engraving machine is equipped with a
protective cover that effectively blocks laser damage and isolates
smoke. The lid-open-to-stop function ensures comprehensive safety
protection.
7.The safety key controls the laser function. When the key is not
inserted, the laser cannot be activated, effectively preventing
unauthorized personnel from operating the machine, safeguarding
your creative workspace.
>>>>> Application
It can be used on materials that absorb blue light well, such as
black alumina, metal business cards, rock coasters, acrylic,
aluminum sheets, wood, corrugated paper, and pebbles; it also works
on materials that absorb infrared light well, including black
alumina, metal business cards, rock coasters, acrylic, aluminum
sheets, copper sheets, and stainless steel.
>>>>>Technical Data
| Basic Parameter |
| Product Name | Desktop Dual Light Source Galvanometer Laser Engraving and Marking
Machine |
| Laser Power | Semiconductor Blue Laser: 20W | Fiber Infrared Laser: 20W |
| Laser Spot Size | ≥0.08*0.1mm | ≥0.03*0.03mm |
| Laser Type | 455nm±15nm | 1064nm±5nm |
| Semiconductor Blue Laser | Fiber Infrared Laser |
| Laser Lifetime | ≥8000-10000 Hours |
| Machine Dimensions | 493mm × 253mm × 373mm |
| Power Supply | 24V ~ 25V ⎓ 10.42 - 11A |
| 250-275W (Two Adapters) |
| Operating Temperature | 0℃~+35℃ |
| Storage Temperature | -10℃~+60℃ |
| Software Related Parameters |
| Connection Methods | USB, Wi-Fi, IP |
| Supported Systems | Mobile:Android, IOS |
| Tablet: iPad OS |
| Computer:Windows, MacOS |
| Supported Software | XCS, LightBurn |
| Supported File Formats | JPG, JPEG, PNG, BMP, TIF, DXF, SVG , etc. |
| Processing Parameters |
| Internal Processing Space | ≤220mm×220mm×145mm (L × W × H) |
| Maximum Processing Speed | 10000mm/s |
| Processing Preview Mode | Rectangle Preview,Outer Contour Preview |
| Preview Speed | Square Border:24000mm/s, Irregular Border:16000mm/s |
| Processing Precision | Minimum Control Precision:0.00482mm |
| Repeat Positioning Precision: 0.001006mm |
| Positioning Methods | Camera Positioning, Border Positioning |
| Focusing Methods | Automatic Focusing & Manual Focusing |

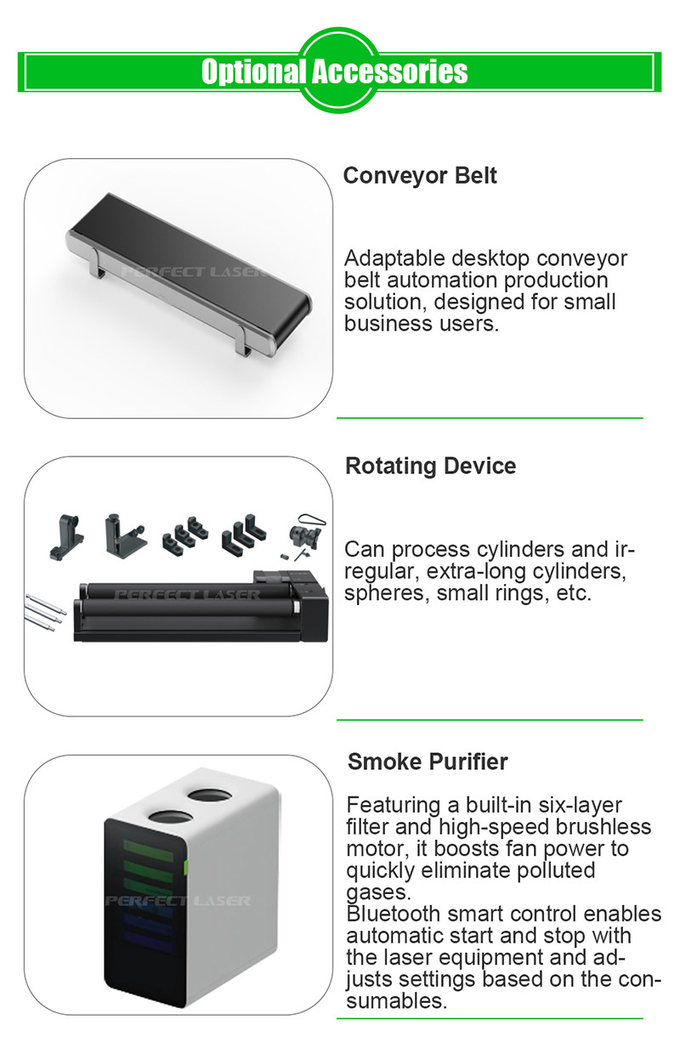

| Conveyor Processing Size | ≥220mm × 500mm × 81.5mm |
| Maximum Processing Height | 145mm |
| Maximum Rotational Diameter | 145mm |
| Offline Processing | Touch Control Panel with 7GB Project File Storage |
