Good Price 2000W Cnc Laser Metal Cutting Machine Fiber Laser
Cutting Machine for Lron Steel Aluminum Copper Plate Sheet
(Model:PE-F2000-2513 )
★ Product Introduction
The fiber laser cutting machine, model PE-F2000-2513, manufactured
by Perfect Laser, is outfitted with a RAYCUS-branded fiber laser
generator, an integrated gantry structural system, and a
state-of-the-art intelligent laser cutting apparatus.
This laser cutting equipment is specifically designed to meet the
demands of large-scale, high-efficiency processing tasks, enabling
intelligent cutting operations. It boasts a long operational
lifespan while ensuring seamless and uninterrupted cutting
processes.
Notably, this aluminum laser cutting machine also features a
comprehensive dust and pollution prevention design. This design
significantly enhances the stability of the equipment's operation,
guaranteeing that the processing workflow remains both efficient
and smooth.
★ Product Features
1. The laser cut steel panels with chiller can effectively reduce
the temperature of the lens and prevent the lens from deforming or
bursting. Stable operation, high work efficiency, effective noise
reduction and long service life.
2. The laser cut steel panels with professional CNC control system
adopts optical fiber communication, the signal is stable, and the
response speed is fast, which greatly improves the working life.
3. The size of the mobile phone's smart remote control handle can
remotely control the laser cut steel panels cutting, emergency stop
and other operations at any time.
4. The gantry structure expands the cutting range and improves the
processing accuracy of the laser cut steel panels.

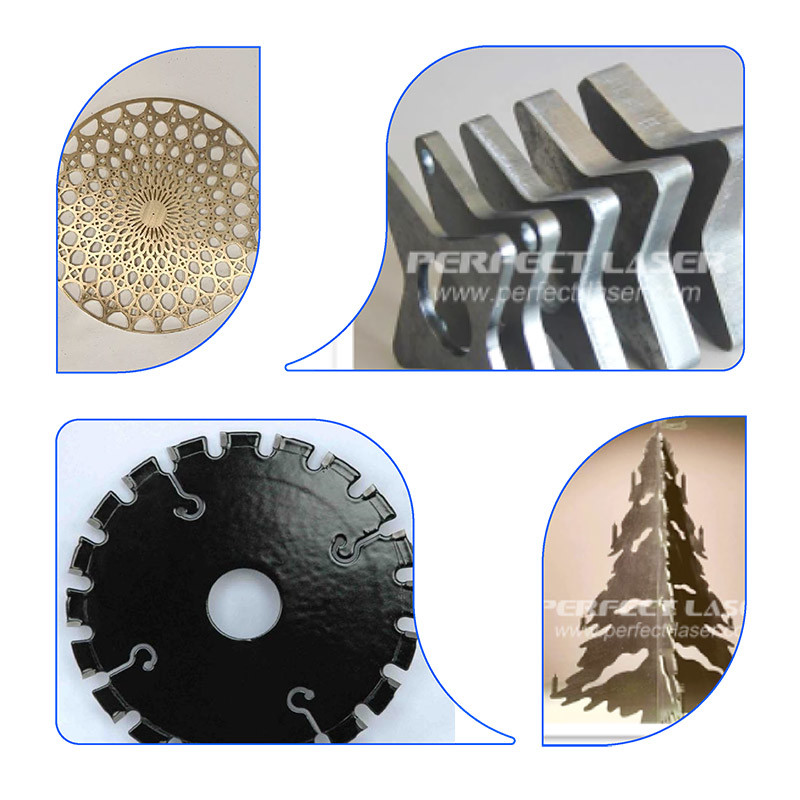

★ Application
1. The cutting machine cut steel panels is suitable for all kinds of metal materials, such
as stainless steel, carbon steel, galvanized sheet, electrolytic
sheet, brass sheet, aluminum sheet, manganese steel, various alloy
sheets, rare metals and other materials, perfect for fast cutting.
2. The cutting machine cut steel panels has a wide range of applications, and it is widely
used in various manufacturing industries such as auto parts,
machinery manufacturing, elevator manufacturing, advertising
production, household appliance manufacturing, equipment, hardware,
decoration, and metal processing services.
★ Technical Parameters
| Product Name | laser cut steel panels iron aluminum copper |
| Model | PE-F2000-2513 | PE-F2000-3015 | PE-F2000-4020 | PE-F2000-6020 |
| Laser Power | 2000 Wattf |
| X / YAxis Stroke | 2500x 1300mm | 3000x 1500mm | 4000x 2000mm | 6000x 6000mm |
| Z Axis Stroke | 100mm |
| Max. Cutting Thickness | 15-20 mm (Carbon Steel) |
| Max. Cutting Speed | 40m/min |
| Maximum Idle Speed | 60m/min |
| Maximum Idle Acceleration | 0.5G |
| X/Y Axis Location Precision | 0.05 mm/m |
| X/Y Axis Re-location Precision | ±0.02 mm |
| Equipment Weight | 4 Tons |
| Focus Method | Dynamic Following System |
| Power Demand | 380V / 50HZ / 3Phase |
| Power Protection Level | IP54 |
| Water Coolermoving speed | 2KW |
| Guarantee | 2 Years Guarantee for Fiber Laser Source 12 Month Guarantee for SS Laser Cutting Machine |
| Training | Perfect Laser Will Offer VCD Training Video for Easy Learning Engineer Overseas Installation & Training is also Available |

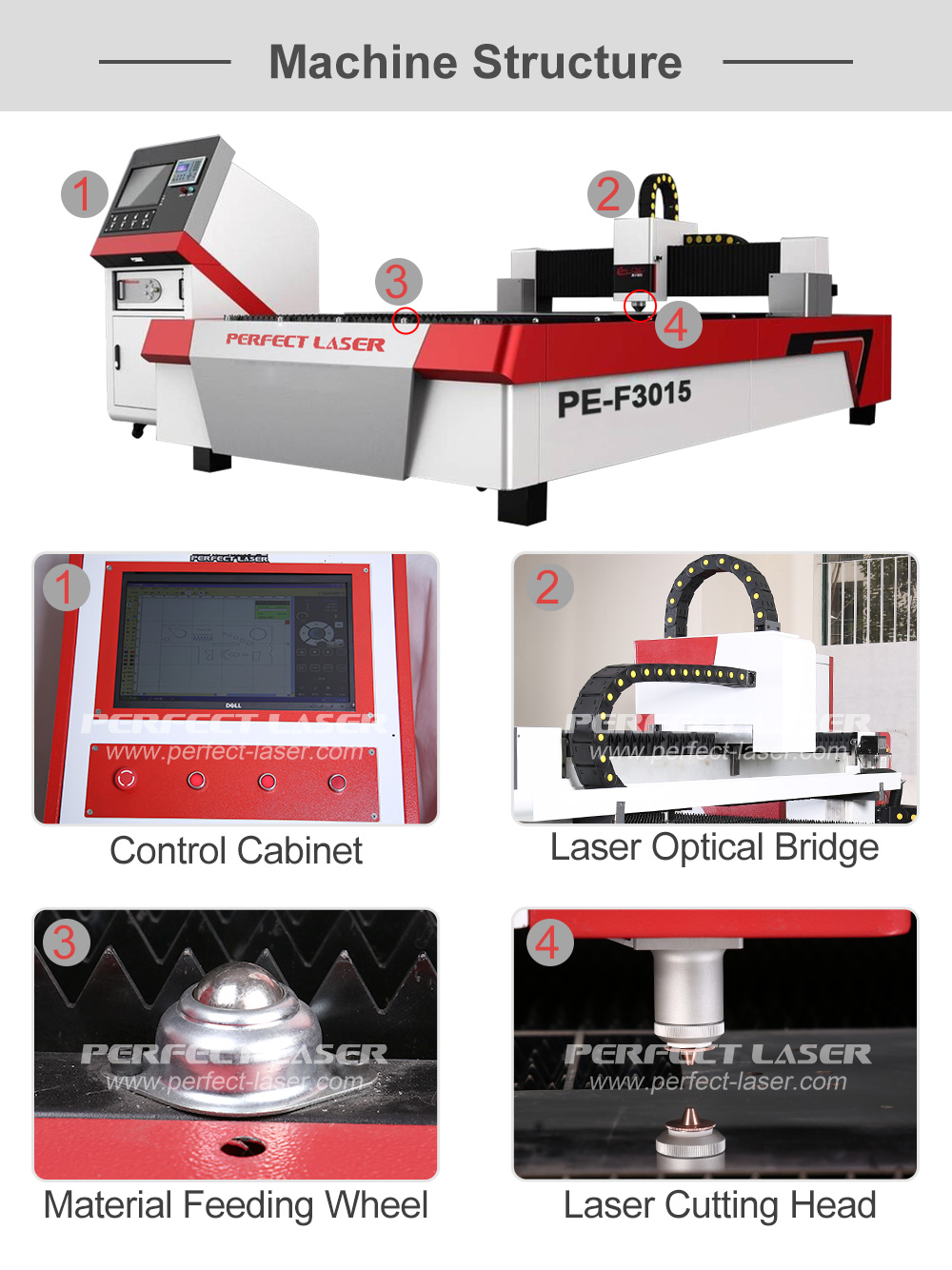

★ Machine Parts
★ Packaging & Delivery
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving
the product, please feel free to contact us. Problems would be
solved for you immediately.
4. Sophisticated and professional logistic agent.
★Competitive Advantages
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland,
Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia,
Japan, Korea, Thailand, Indonesia, Uruguay and many other
countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick
delivery.
